The Complete Guide to Bubble Bags
Looking for custom bubble bag manufacturing? ZXC Print produces a full range of bubble cushion bags — from lightweight single-sided bubble wrap pouches to heavy-duty double-sided padded mailers and anti-static bubble bags for sensitive electronics. Manufactured from LDPE bubble film in bubble heights from 3 mm to 10 mm, available in kraft paper laminate, pearl film, metallized, and transparent finish. Custom sizes from 100×150 mm to 1500×2000 mm with full-color flexographic printing. Suitable for e-commerce logistics, electronics, ceramics, furniture, automotive parts, and industrial packaging. Free quote and pre-production samples available.
What Are Bubble Bags?
Bubble bags are protective packaging pouches made from LDPE (low-density polyethylene) bubble film — the same material as conventional bubble wrap, but pre-formed into bag shapes with sealed edges for ready-to-use cushion packaging. Unlike flat bubble wrap sheets that must be manually cut, folded, and taped around products, bubble bags are pre-sized pouches that can be loaded, sealed, and shipped in a single motion.
At ZXC Print, bubble bags are manufactured through a complete in-house process: LDPE resin extrusion and film blowing with controlled bubble formation, annealing for bubble stability, film slitting, bag cutting, and heat sealing. The bubble film is produced by passing molten LDPE through a patterned chill roll that creates hemispherical air pockets, which are then sealed by a second layer of flat or bubble film to trap air permanently within each cell.
Bubble bags provide a unique combination of cushioning, light weight, and moisture protection that distinguishes them from foam-lined mailers, corrugated box inserts, and paper cushioning. The trapped air cells act as individual shock absorbers, distributing impact forces across the bag surface and preventing damage to fragile contents during transport and handling.
Related service: custom bag printing for our full line of bag materials and styles.
Bubble Film Structure & Physical Properties
The performance of a bubble bag depends on the bubble geometry, film thickness, and the number of film layers. Understanding these parameters helps select the right bag for specific product weight and fragility.
| Parameter | Options | Effect on Cushioning |
|---|---|---|
| Bubble Diameter | 6 mm (small), 10 mm (medium), 25 mm (large), 30 mm (jumbo) | Small bubbles (6 mm) provide dense, even cushioning for lightweight items. Large bubbles (25–30 mm) absorb higher impact forces for heavier products. Medium bubbles (10 mm) offer the best general-purpose balance. |
| Bubble Height | 3–10 mm depending on bubble diameter | Taller bubbles provide more air volume per cell, increasing shock absorption height. Shorter bubbles offer tighter packing and more cells per square inch for even load distribution. |
| Film Thickness | 30–120 microns (LDPE film per layer) | Thicker film produces stiffer, more durable bubbles that resist popping under pressure. Thinner film produces softer, more conformable bags that wrap tightly around irregular shapes. |
| Layer Construction | Single-layer (one bubble + one flat film) or double-layer (two bubble films back-to-back) | Single-layer: lighter, more flexible, suitable for lightweight products (up to 2–3 kg). Double-layer: double the cushioning, higher impact resistance, suitable for heavier items (up to 10–15 kg). |
| Liner Type | None (naked bubble), kraft paper, pearl film, aluminum foil, transparent film | The outer liner determines surface friction, tear resistance, printability, and barrier properties. Kraft paper adds a natural look and tear resistance. Pearl film adds waterproofing and a premium matte finish. |
Cushioning efficiency: Bubble film achieves a cushioning efficiency of 35–55% depending on bubble geometry and loading conditions. This is measured by dynamic cushioning curves per ASTM D1596, which plot peak acceleration against static load. We provide cushioning performance data for each bubble specification on request.
Bubble Bag Types by Structure
Bubble bags are classified by the number of bubble layers and the type of outer liner material. Each structure serves different protection, appearance, and branding requirements.
| Bag Type | Construction | Protection Level | Best For |
|---|---|---|---|
| Naked Bubble Bags (Single-Sided) | One layer of bubble film sealed to a flat LDPE backing film. Bubbles face inward toward the product. | Light to moderate. Ideal for products up to 2–3 kg. Most economical bubble bag format. | E-commerce poly mailers, document pouches, lightweight electronics, cosmetics packaging. Lowest unit cost. |
| Double-Sided Bubble Bags | Two layers of bubble film sealed back-to-back with bubbles on both inner surfaces. Maximum air cushion per unit thickness. | High. Bubbles on both sides double the air cushion volume. Suitable for products up to 10–15 kg. | Heavy electronics, automotive parts, power tools, glassware, ceramic items. Maximum shock absorption. |

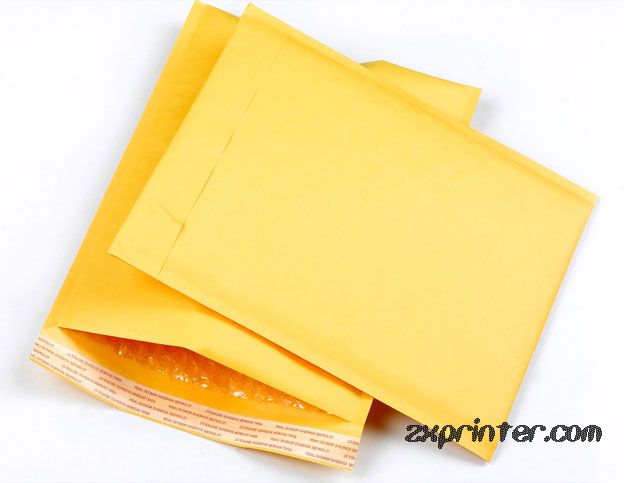

| Kraft Paper Bubble Mailers | Bubble film laminated to a kraft paper outer layer (80–150 gsm). Paper on the outside, bubbles on the inside. Self-seal adhesive strip closure. | Moderate to high. Kraft paper adds puncture resistance and a premium outer appearance. Bubble inner layer provides cushioning. | E-commerce shipping, branded mail-order packaging, books and media, gifts, apparel. Most popular bubble mailer format for courier shipping. |
| Pearl Film Bubble Bags | Bubble film laminated to a white pearlized BOPP or EPE foam outer layer. Soft matte finish with waterproof surface. | Moderate to high. Pearl film adds water resistance and a soft-touch surface. Good for products requiring water protection and a premium unboxing experience. | Cosmetics, skincare, premium electronics, jewelry, luxury goods. Waterproof and aesthetically upscale. |
| Metallized / Aluminized Bubble Bags | Bubble film laminated to a metallized PET or aluminum foil outer layer. Reflective metallic surface provides both cushioning and barrier protection. | High. Metallized layer adds moisture barrier, light barrier, and heat reflection. Bubble layer provides cushioning. | Photographic equipment, optical components, temperature-sensitive chemicals, printed circuit boards. Combines cushioning with environmental protection. |
| Transparent Bubble Bags (2-Layer or 3-Layer) | Clear bubble film with a transparent flat outer film. 2-layer: one bubble + one flat. 3-layer: bubble between two flat films for extra strength. | Light to moderate for 2-layer; moderate to high for 3-layer. Product is visible through the bag for easy identification. | Retail display packaging, warehouse organization, multi-pick fulfillment centers. Products remain visible without opening the bag. |
Custom combinations: Any combination of bubble diameter, film thickness, and outer liner can be produced to match specific product fragility, weight, and branding requirements.
Functional Types by Electrostatic & Barrier Properties
Beyond structural types, bubble bags are also classified by their electrostatic and barrier properties — critical for electronics, aerospace, and pharmaceutical applications.
| Type | Surface Resistance | Key Property | Standards & Best For |
|---|---|---|---|
| Standard Bubble Bags | > 1012 Ω/sq (insulative) | Standard LDPE bubble film without any anti-static treatment. Low cost, general-purpose cushioning. Not suitable for direct contact with sensitive electronics. | Non-electronic products: ceramics, furniture, hardware, crafts, gifts, books. General e-commerce and logistics cushioning. |

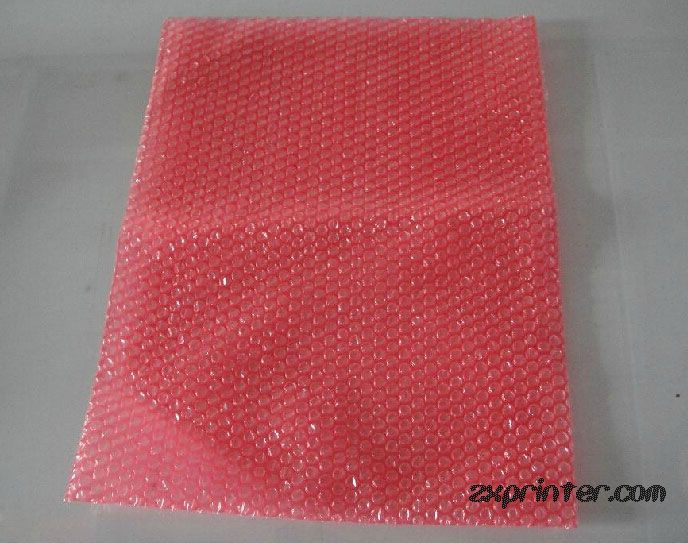

| Anti-Static Bubble Bags (Pink) | 109–1011 Ω/sq (static dissipative range) | LDPE with anti-static additive distributed throughout the film. Pink tint for visual identification. Does not generate static charge but does not actively dissipate existing charge. | ANSI/ESD S20.20 compliant. For non-critical electronic components, PCBs in storage, sub-assembly transport. Prevents ESD events from the bag itself. |
| Static Dissipative Bubble Bags (Black or Translucent) | 106–109 Ω/sq (dissipative) | Conductive carbon or metal particles embedded in the film matrix. Actively dissipates static charge to ground. Provides Faraday cage protection when fully sealed. | ANSI/ESD S20.20, MIL-PRF-81705E. For sensitive ICs, hard drives, aerospace components. Required where products ship through uncontrolled ESD environments. |
| Metallized Barrier Bubble Bags | NA (barrier focus) | Bubble film with vacuum-metallized aluminum coating or foil laminate. Provides MVTR < 0.1 g/100 in²/day and OTR < 0.1 cc/100 in²/day at 23°C. | MIL-SPEC barrier requirements. For moisture-sensitive optical components, hygroscopic powders, photographic film, sensitive chemical reagents. |
Material certification: Anti-static and static-dissipative bubble bags are tested per ESD Association standards. Test reports with surface resistivity measurements are provided with each batch.
Standard Sizes & Sealing Options
Bubble bags are produced in custom sizes to match product dimensions precisely. Proper fit minimizes product movement inside the bag while avoiding wasted material.
| Bag Width | Bag Length | Bubble Height | Construction | Typical Weight Capacity |
|---|---|---|---|---|
| 100–300 mm | 150–400 mm | 3–5 mm (small bubble) | Single-sided or kraft paper | Up to 1 kg — jewelry, small electronics, accessories |
| 200–400 mm | 250–500 mm | 5–10 mm (medium bubble) | Single-sided, double-sided, or kraft | 1–5 kg — phones, tablets, books, cosmetics, gifts |
| 300–600 mm | 350–700 mm | 10 mm (medium/large bubble) | Double-sided or kraft paper | 3–10 kg — power tools, auto parts, kitchenware, shoes |
| 400–800 mm | 500–1000 mm | 10–25 mm (large bubble) | Double-sided or pearl/metallized | 5–15 kg — large electronics, heavy parts, multiple units |
| 600–1500 mm | 800–2000 mm | 25–30 mm (jumbo bubble) | Double-sided, metallized, or custom | 10–25 kg — industrial components, furniture, bulk shipment |
Sealing options:
- Heat seal closure — Permanent seal for single-use applications. Seal width 5–15 mm.
- Self-seal adhesive strip — Peel-and-seal closure on the bag flap. Available on kraft paper and pearl film bubble mailers. Tamper-evident.
- Hot melt adhesive closure — Permanent pressure-sensitive closure. Stronger than self-seal, suitable for heavy items.
- Open top (no closure) — Unsealed bags for manual folding and taping. Most cost-effective.
Printing & Customization Options
Bubble bags can be custom-printed on the outer flat film or liner surface. The bubble film itself is not printable, but the smooth liner surface accepts flexographic printing for branding, handling instructions, and barcodes.
| Parameter | Options |
|---|---|
| Printable Surface | Outer flat LDPE film (naked or double-sided bags), kraft paper surface, pearl film surface, or metallized surface. Bubble surfaces are not printable. |
| Printing Method | Flexographic printing, up to 6 colors. Suitable for logos, branding text, handling instructions (Fragile, This Side Up), barcodes, and simple illustrations. |
| Color Matching | Pantone Matching System (PMS). Spot colors recommended for logo consistency on film and paper surfaces. |
| Custom Colors | Bubble film can be tinted in custom colors (pink for anti-static is standard; custom colors require minimum order of 50,000+ units). |
| Custom Shapes | Rectangular standard. Die-cut shapes available for custom-fit product packaging (gusseted bags, corner pouches, side-gusset designs). |
| Additional Features | Tear notch for easy opening, hang hole for retail display, reinforced header for peg-hanging, resealable zipper (on kraft and pearl film mailers). |
Applications & Industry Use Cases
| Industry | Applications | Recommended Bag Type |
|---|---|---|
| E-Commerce & Logistics | Poly mailers for apparel, accessories, books, media, multi-item orders | Naked single-sided bubble bags, kraft paper bubble mailers. Self-seal closure for fast fulfillment. |
| Electronics Manufacturing | PCBs, motherboards, hard drives, displays, semiconductor components | Anti-static or static-dissipative bubble bags. Pink or black for ESD protection. Double-sided for heavy components. |
| Automotive & Industrial | Spare parts, sensors, control units, bearings, tools, metal components | Double-sided bubble bags, large-bubble jumbo bags. Heavy-duty heat seal or hot melt closure. |
| Consumer Goods & Retail | Cosmetics, perfumes, skincare, jewelry, watches, small appliances | Pearl film bubble bags, kraft paper bubble mailers, metallized bubble bags. Self-seal closure with premium appearance. |
| Furniture & Homewares | Glassware, ceramics, lighting fixtures, decorative items, dishware, mirrors | Double-sided bubble bags, jumbo-bubble bags. Large sizes for wrapping irregular shapes. |
| Medical & Pharmaceutical | Medical devices, diagnostic equipment, lab supplies, pharmaceutical samples | Anti-static or metallized barrier bubble bags. Clean-room compatible materials available. |
| Aerospace & Defense | Avionics components, navigation equipment, sensitive instruments, communication modules | Static-dissipative and metallized barrier bubble bags meeting MIL-SPEC requirements. Full ESD and barrier certification. |
| Photography & Optics | Camera bodies, lenses, optical instruments, film, photographic paper | Metallized barrier bubble bags for light and moisture protection. Anti-static for sensitive optical electronics. |
Key Advantages of Custom Bubble Bags
- Superior Impact Protection — Trapped air cells absorb and distribute shock across the bag surface, reducing peak G-force at the product by 50–70% compared to foam padding of equivalent thickness. Dynamic cushioning curves available for each bubble specification.
- Light Weight — A typical bubble bag weighs 60–80% less than a foam-lined corrugated box for the same product volume. This reduces dimensional-weight shipping costs significantly, especially for air freight.
- Space Efficiency — Bubble bags ship flat and are stored flat, occupying minimal warehouse space. A carton of 500 flat bubble bags occupies the same shelf space as approximately 20 pre-assembled corrugated boxes.
- Integrated Cushioning & Envelope — Unlike bubble wrap (which requires wrapping + taping + an outer box/poly bag), bubble bags serve as both cushioning and outer packaging in one unit. This reduces packaging labor time by 50–70% in fulfillment operations.
- Moisture & Dust Protection — The sealed LDPE film construction provides a waterproof and dust-proof barrier. Metallized and pearl film options add additional moisture and light barrier for sensitive products.
- ESD Protection Options — Anti-static and static-dissipative grades provide ESD protection that meets ANSI/ESD S20.20 and MIL-PRF-81705E standards. Pink bubble bags provide static-safe storage; black static-dissipative bags provide Faraday cage protection.
- Custom Branding — Flexographic printing on the outer surface turns each bubble bag into a branded shipping package. Kraft paper mailers with custom printing are a cost-effective alternative to custom-branded corrugated boxes.
Frequently Asked Questions About Bubble Bags
What is the difference between single-sided and double-sided bubble bags?
Single-sided bubble bags have bubbles on one side and a flat film on the other. They are lighter, more flexible, and economical — suitable for products up to 2–3 kg. Double-sided bubble bags have bubbles on both inner surfaces, providing twice the air cushion volume and higher impact resistance for products up to 10–15 kg. Choose single-sided for general e-commerce; double-sided for heavy or fragile items.
Can bubble bags be used for anti-static protection?
Yes. Standard bubble bags are insulative and not suitable for electronic components. For ESD protection, we offer pink anti-static bubble bags (prevents static generation, surface resistance 10&sup9;–10¹¹ Ω/sq) and black static-dissipative bubble bags (actively dissipates charge, 10&sup6;–10&sup9; Ω/sq). Both comply with ANSI/ESD S20.20 standards.
What is the minimum order quantity for custom bubble bags?
Unprinted standard-size bubble bags start at 1,000 pieces. Custom-printed kraft paper bubble mailers start at 5,000 pieces. Anti-static and static-dissipative grades require 10,000+ pieces. Custom bubble diameter or film thickness with custom artwork may require 20,000–50,000 units. Contact us with your specifications for an exact MOQ quote.
Can I get custom-printed branding on bubble mailers?
Yes. Kraft paper bubble mailers and pearl film bubble bags accept up to 6-color flexographic printing on the outer surface. We recommend spot Pantone colors for brand logo consistency. Full-surface print coverage is available. We provide free die-line templates for artwork setup. Printed bubble mailers turn your shipping packaging into a mobile brand advertisement.
Do bubble bags come with self-seal closures?
Yes, kraft paper bubble mailers and some pearl film bubble bags come with a self-seal adhesive strip on the bag flap — simply peel the release liner and press to seal. Naked bubble bags typically use heat seal closures. Hot melt adhesive closures are available for heavy-duty applications requiring a permanent, high-strength seal.
What bubble size should I choose for my product?
Small bubbles (6 mm diameter, 3–5 mm height) are best for lightweight items under 1 kg — jewelry, small electronics, accessories. Medium bubbles (10 mm, 5–10 mm height) suit most general-purpose applications up to 5 kg. Large bubbles (25–30 mm, 8–10 mm height) are for heavy items over 5 kg requiring maximum shock absorption. If in doubt, medium bubbles with double-sided construction provide the best all-round protection.
Are bubble bags recyclable?
LDPE bubble film is technically recyclable. Kraft paper bubble mailers present a recycling challenge because the paper and film layers are laminated together. We recommend checking local recycling guidelines — some facilities accept LDPE film at drop-off locations. We are working on recyclable mono-material bubble bag alternatives using MDO-PE structures that maintain cushioning performance while improving recyclability.
Can bubble bags protect against moisture and humidity?
Standard LDPE bubble bags provide good moisture protection (MVTR ~1–2 g/100 in²/day at 38°C/90% RH). For higher moisture barrier requirements, metallized bubble bags reduce MVTR to < 0.1 g/100 in²/day, making them suitable for hygroscopic products, photographic film, and moisture-sensitive chemicals. Pearl film bubble bags also provide excellent water resistance with a premium appearance.
Why Choose ZXC Print for Bubble Bag Manufacturing?
Complete In-House Production
LDPE extrusion, bubble film blowing with controlled bubble formation, lamination, printing, bag cutting, and heat sealing — all at our facility. Consistent quality from resin to finished bubble bag.
Full Range of Functional Types
Standard, pink anti-static, black static-dissipative, and metallized barrier bubble bags. Tested per ASTM and ESD Association standards with full certification documentation.
Custom Branding & Sizing
Up to 6-color flexo printing on kraft, pearl, or LDPE surfaces. Custom sizes from 100×150 mm to 1500×2000 mm. Free die-line templates and digital proofs.
Global Shipping
Export to 50+ countries. Free pre-production samples and digital proofs. Standard FOB Shenzhen or door-to-door logistics. Full compliance documentation for ESD and barrier certifications.
Ready to start your bubble bag project? Request a free quote with no obligation. We’ll help you select the right bubble size, construction type, liner material, and printing approach for your product packaging requirements.
