The Seven Layers of Pressure-Sensitive Label Material

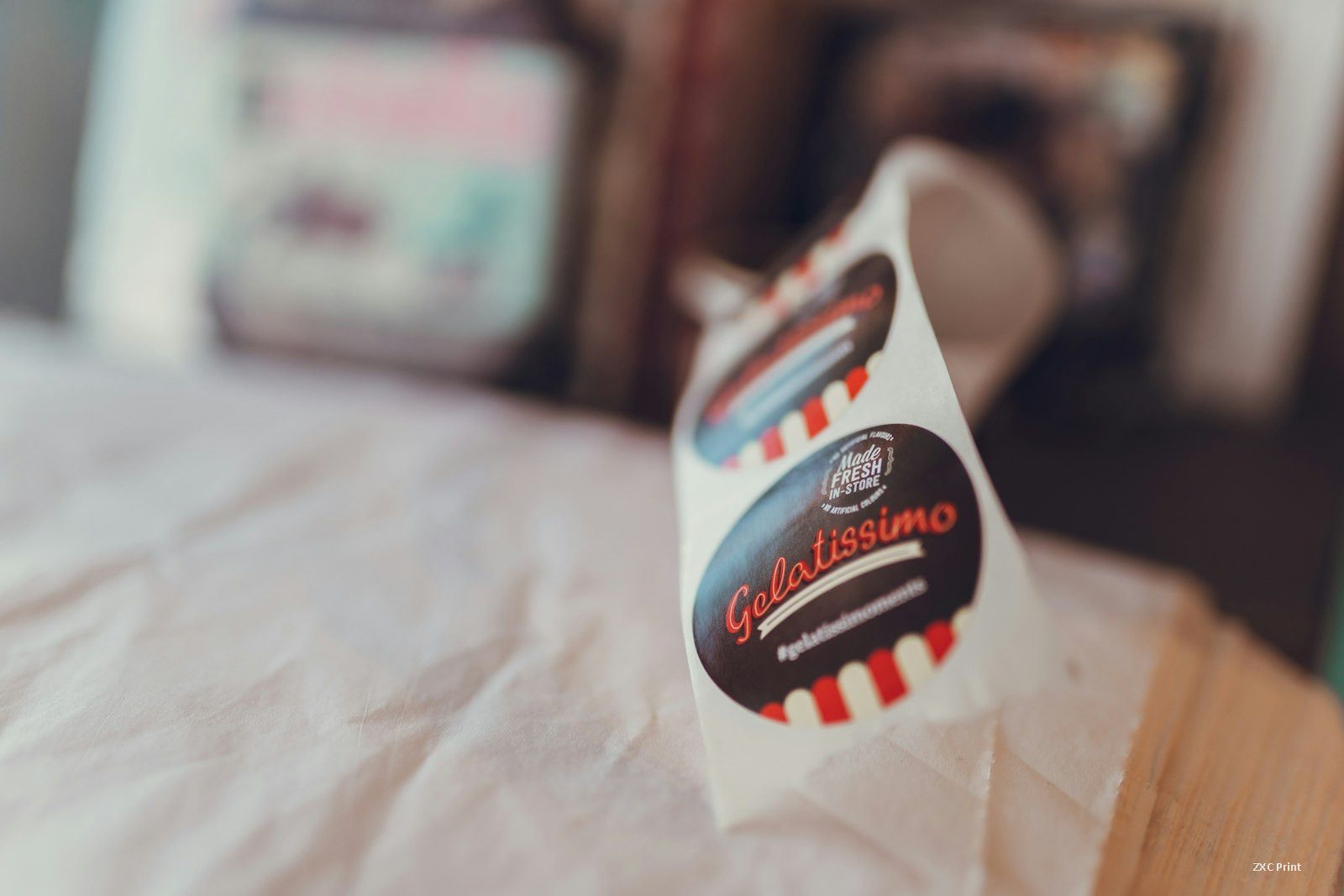

If you have ever ordered custom stickers or product labels, you may have noticed that a roll of label stock is never a single piece of material. Peel a die-cut label off the backing and you are separating two layers. In fact, a typical pressure-sensitive label construction contains seven distinct layers, each with a specific job. Understanding what they are helps you choose the right material for your product, and it also explains why some labels stick well for years while others curl or fall off within weeks.

Layer by layer: what a label is made of

1. Top coating. The top coating is applied to the face of the material to change its surface properties. It can improve surface tension, add color, or provide a protective barrier. Its main purpose is to help the face stock accept ink and toner, so printing stays sharp and resists smudging and wear. Top coatings are most common on non-absorbent face stocks such as aluminum foil, metallized paper, and plastic films.

2. Face stock. The face stock is the layer that carries the printed design on its front and the adhesive on its back. Almost any material that can flex can serve as face stock: paper, film, foil laminates, textiles, thin metal, and some rubber-based materials. The choice depends on the application and the printing process. A face stock must accept ink well and have enough strength to survive die-cutting, matrix removal, slitting, hole punching, and label application.

3. Primer. The primer sits between the face stock and the adhesive. It performs a similar job to the top coating, but on the back side. A primer stops adhesive solvents from soaking into the face stock, increases opacity, strengthens the bond between the adhesive and the face material, and blocks plasticizers from migrating out of film face stocks. Without a primer, plasticizers can soften the adhesive over time, which is a common reason labels lose their grip and peel off containers.

4. Adhesive. The adhesive is the medium that bonds the label to the product surface. Adhesives come in two broad families: permanent and removable. Within those families there are many formulations, tuned for different face stocks, surface energies, temperatures, and end uses. The adhesive is the most important component in label technology, because it decides whether the label stays where it is supposed to stay.

5. Release coating. The release coating, usually a silicone layer, is applied to the liner. Silicone creates a surface with very low surface energy and low friction, so the adhesive does not bond to the liner. The result is a label that peels off cleanly when needed but still holds firmly in transit.

6. Liner. The liner, sometimes called the backing paper, carries the release coating, protects the adhesive, and supports the face stock during die-cutting, matrix removal, and dispensing on automatic labeling machines. Liner choice affects how well a roll feeds through a labeling line, so converters match liner weight and stiffness to the applicator.

7. Back coating or back printing. The back coating protects the back of the liner. It stops adhesive from sticking to the liner when labels are rewound into a roll, and it is also used when building multi-layer labels. Back printing puts a trademark or a pattern of the manufacturer on the back of the liner, which serves both promotion and anti-counterfeiting purposes.

Five ways to classify label materials

Manufacturers group pressure-sensitive materials in five common ways. By adhesive behavior, there are permanent and removable types. By coating technology, there are hot-melt, solvent-based, and emulsion adhesives. By adhesive chemistry, there are rubber-based and acrylic systems. By liner type, there are opaque, semi-transparent, and transparent liners. By face stock, there are paper, film, and specialty materials such as security stocks.

What this means for your next label order

When you brief a printer on a labeling project, a few decisions follow directly from the layer structure above. First, choose the face stock by the surface it will be applied to and the environment it will live in: paper labels work well indoors on dry, clean surfaces, while film face stocks resist moisture and abrasion in kitchens, bathrooms, and outdoor use. Second, decide whether the adhesive should be permanent or removable. Removable adhesives suit price tags and shelf labels that need clean removal, while permanent adhesives are for tamper-evident seals and long-life product identification. Third, tell your supplier about the container material. If the container is a soft plastic, plasticizer migration is a real risk, and a properly primed construction prevents the label from lifting. A good supplier will walk you through these trade-offs, and the seven-layer model gives you the vocabulary to ask the right questions.
